The DVI-HBT video extender adopts HDBaseT technology to realize long-distance
transmission of DVI signal.
DVI-HBT-T supports 1x DVI input and 1x HDBaseT output, with the same resolution of 1920×1080@60Hz. DVI-HBT-R supports 1x HDBaseT input and 1x DVI output, with the same resolution of 1920×1080@60Hz.

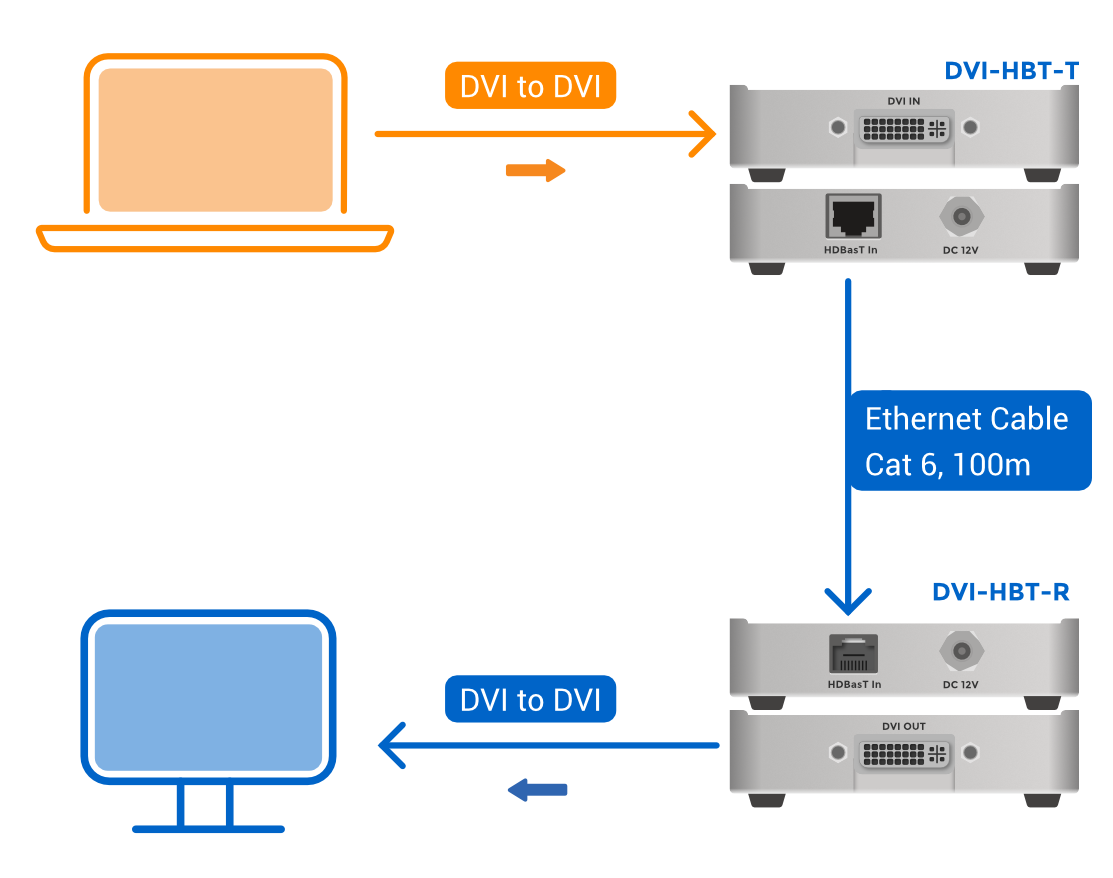

With both DVI-HBT-T and DVI-HBT-R, HDBaseT connector supports 100-meter transmission distance by using only one CAT 6 Ethernet cable. This solves the problems of bad transmission and image interference due to long Ethernet cable, and improves the DVI signal transmission distance and image quality.
DVI-D Single Link 18+1 input connector
Supports input resolutions up to

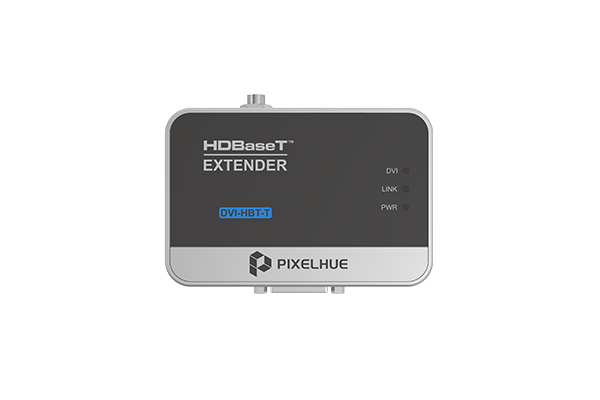

On: The HDCP-encrypted input source is accessed.
Off: The input source is not accessed.
Flashing: The input source is accessed but not used.
On: Data is being transmitted.
Off: HDBaseT connector is not connected.
Flashing: DVI connector is not connected.
On: Power supply is connected.
Off: Power supply is not connected.

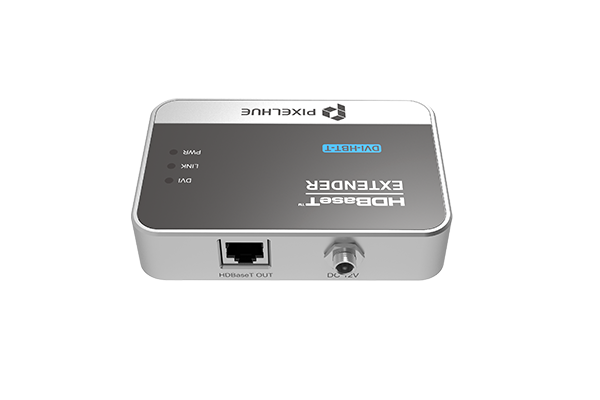

|HDBaseT OUT||1||HDBaseT output connector is used for data transmission.|
